Building a Live Bait Well For A Small Boat

April 19, 2010 By Tom 20 Comments


Removable livewell for a small boatThis is what I came up with to use as a livewell on my 15' Boston Whaler.Large round drink cooler acts as a live baitwellI bought a round drink cooler at Wal Mart, and removed the handle on one side. In its place, I drilled a hole with a hole saw and installed an ordinary plastic bulkhead fitting.

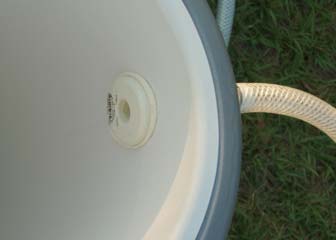

Drilling holes in the cooler for water circulation

On the other side and somewhat lower, I drilled a much larger hole and put a plastic bulkhead fitting which has a flat flange, designed to sit low to the deck in the transom on boats with self-bailing cockpits.

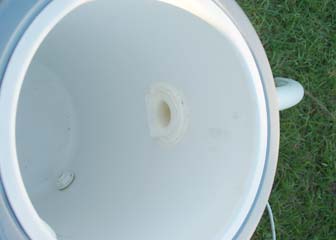

A screen on the flange will prevent shrimp and small baitfish from escaping

I will mount a small plastic coarse screen on that flange, to prevent smaller baitfish and shrimp from escaping overboard.

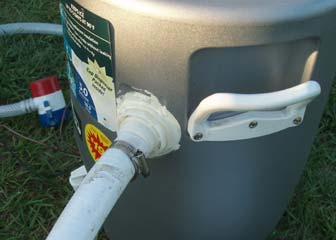

A short hose serves as the drain

On the outside, I put a short length of hose for the overboard drain.

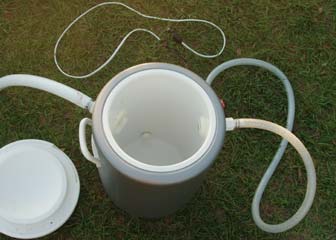

An overview of the livewell

Here's an overhead view of the whole assembly.

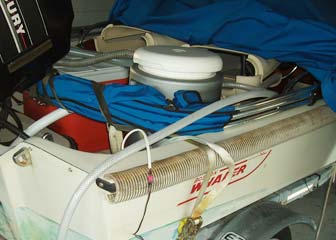

Livewell in the stern of my Boston WhalerAnd here is my custom-built livewell tucked into a tiny space in the stern of my boat.

A live bait well on a small boat is never easy, especially if the boat can't be outfitted with a built-in livewell of any size.

I used to use a 5 gallon bucket with a perforated plastic bait lid, but it had to be lifted in and out of the water at each fishing stop, and recirculation was not good with holes only in the lid. I had to drain about half the water out before running at speed in any waves, or water sloshed out into the boat.

I Needed A Better Baitwell

I decided I needed a removable livewell that could either intake water from over the side or recirculate its own water with a small bilge pump. Here is what I came up with.

When it is sitting in the back of my 15 Whaler, I can hang the hose with the bilge pump overboard and plug it in to a switched cigarette lighter type 12 volt outlet on the console of the boat. The hose is long enough to hang down a couple of feet, where water is cooler and more oxygen-rich, which will mean lively bait on a hot day.

I run the drain hose into the self-bailing motor well. When running between fishing spots, the lid prevents any water from splashing into the boat, and I just put the hose and bilge pump on deck. I can also put the pump inside the cooler livewell and make it recirculate as a livewell aerator pump.

I also have a 12 volt outlet connected to a couple of alligator clips, so I can clip on to any 12 volt battery and plug in the live bait well pump. I can bring it along on other boats that don't have a live well, as long as there is a battery, or I can bring a battery, too.

Result? A Removable, Small-Space Livewell for a Little Time and Money

This livewell works great, and was cheap and easy to build. My expenditures included some through hull marine bulkhead fittings meant for above waterline use, some hoses, a small bilge pump, and a cooler. I already had some wire and I bought a 12 volt cigarette lighter type plug fitting to put on the end. I used crimp connectors sealed with plastic liquid electrical tape to connect the bilge pump wires.

Instead of stainless steel hose clamps, I used my new ClampTite clampmaking tool to make my own stainless steel wire clamps on the hoses.

The whole thing cost about $60-70 in parts.

Filed Under: Boat Repairs & Upgrades, Boating Equipment, Fishing Tagged With: bail well, small boats

Comments

  1. dominic says

    August 21, 2008 at 12:30 pm

    thats so cool i bought a live well pump for my boat to make a 25 gall bait tank but when all hooked up i had to keep priming it. so i guess i should of got a beilge pump instead. do you think my pump is not strong enough it pumps 800 gall in an hour ?

    Log in to Reply
    • Tom says

      August 21, 2008 at 12:30 pm

      800 GPH is plenty for a livewell, but not all pumps are self-priming. A self
      priming pump must be able to run dry and suck air through the lines while
      doing it.

      Log in to Reply
  2. tom says

    October 10, 2008 at 12:29 pm

    I like that assembly but I am going to uses a 55 gal. drum plastic

    Log in to Reply
  3. Jake says

    December 23, 2008 at 12:28 pm

    The city that I live in is selling an old 500,000 gallon elevated storage tank. I’m gonna cut the legs off that sucker and cut a big door in the top and pull it behind my boat with a chain. I’ll use the fartmaster 5000 for aeration (solar powered of course to be green). I need this setup for whale fishing.

    Log in to Reply
  4. Duane Tway says

    June 14, 2009 at 11:50 am

    Great idea. Everything is quite clear about building this livewell except how to get 12v to the bilge pump. I don’t see from the photos how this is done.

    Answers welcome.

    Duane

    dtway@mindspring.com

    Log in to Reply
    • Tom says

      June 14, 2009 at 11:51 am

      Duane,

      I just run the 12 volt wires to a jump battery carried for the purpose, so I don’t drain the boat’s single starting battery.

      Log in to Reply
  5. ddakota says

    July 4, 2009 at 11:24 am

    I like the concept – round wells are better for baits than square ones. It appears from the photos you did it backwards though. The pump inlet should be low near the base of the well. The outlet should be near the top. Clean water flows in from the bottom and overflows out the top, allowing more clean water to stay in the well. Your set-up pumps water in from the top, creating a of splash and turmoil, then drains out from the lower drain. Reverse your setup and you get more clean water in the well for your baits.

    Log in to Reply
    • Tom says

      July 4, 2009 at 11:51 am

      ddakota, I appreciate your suggestion, but put the hoses that way to provide better aeration than a bottom load would. In very warm water, some splashing can keep the bait alive and kicking.

      Log in to Reply
  6. richard berst says

    August 4, 2009 at 12:13 pm

    you did great job it nice for people like me that dont know how to do it. thank you .

    Log in to Reply
  7. Raeford Brown says

    October 10, 2009 at 12:09 pm

    Nice idea. I’ve been looking for some ideas that are less costly than the “manufactured” rigs on the market. There are some 12-18 gallon (I haven’t checked the exact size, as yet) plastic drums here, complete with screw-0n lids, for ten bucks. I will be trying out one soon. Perfect for the “occasional” live bait angler (I normally use artificials of one kind or another). DDakota is right, I think…inlet at the bottom (or close to it), and overflow pipe a few inches below the top. Great idea. And, thanks.

    Log in to Reply
  8. Tom Stout says

    October 16, 2009 at 12:08 pm

    Awesome! Thanks for this info with photos. I own a 17 ft. Montaulk. I will place the supply up at the top so it is easier to hang the pump overboard, but I will install clear flexible hose to the bottom of the cooler so that it will cause a circular flow from the bottom to the top where the spillway will be.

    Log in to Reply
  9. sandra says

    February 4, 2010 at 12:05 pm

    the man is right about the inlet should be at the bottom of the tank, my husband built ours and we put shag in it for stripe fishing, the shag keeps longer…the round well are better, they dont live long in a square cooler.

    Log in to Reply
  10. mkay says

    November 8, 2010 at 11:26 am

    ddakota is correct.i’ve been using live bait for more then 30 years.i piped my live well from the bottom with a 90 degree fitting aimed to circulate the water.i’ve had pilchards& google eyes live for days.i also put a check valve in the line because i use the same thruhule for a wash down hose or when i use shrimp i can turn the pump off and it won’t backsiphon

    Log in to Reply
  11. Bob Davenport says

    November 30, 2010 at 11:23 am

    Tom thanks for the aritle and instructions on installation. I just had the leaning post/live well combination removed from my boat ( installing two nice captins chairs)_ and was trying to figure out what to do with the hose that went to the live well. Now I know thanks to you. I’m making my way over to Walmart to see what kind of tank I like. Agin many thanks…..Bob

    Log in to Reply
  12. richard says

    January 31, 2011 at 11:22 am

    I have a 14 ft boat im going to do one just like yours but with the water comming in from the bottom and comming out at the top ,super cool thanks for the post

    Log in to Reply
  13. jimmyboy says

    February 4, 2011 at 11:21 am

    hi guys i have a small 12 footer and i also have a live well that is portable and removerble and the best way to keep the water replentished is definatly have the inlet nearer the bottom and the outlet near the top i get my power for my bilge pump with a small power pack 600 and is fully enclosed so no worry about spilling the battery acid and small in size easy to handle hope this helps cheers

    Log in to Reply
  14. Ray says

    February 16, 2011 at 11:20 am

    This is the best Ice cooler plans I have found I aqm going to make one

    Log in to Reply
  15. tracy says

    October 24, 2011 at 10:57 am

    great design for a whaler! i have a smaller 17ft. jon boat…i have already made a bait well but it does not recirculate.this would be a simple switch to make.the only question i have,does the recirculating action kill the need to aerate with bubbler altogether as it is fresh water constantly being supplied

    Log in to Reply
  16. Steven A. Kacer says

    July 11, 2012 at 10:47 am

    Enjoying the bait tank you made. Well I am in progress of making my own from a 20 gallon Igloo ice chest. I drilled two holes one for a inlet at the bottom of the cooler and one for a outlet near the top. I placed a pump that pushes 2.8 GPM. to a hanger I atached to the hull. Then dirrect wird it to a on of tago swich.. All is in shrink wrap as to the connections. Providing both a dirrect connection with a manual shut of switch then a set of jumpers that can be connected to the battery. It should work well we will see in a mounth when I go out to the lady the sea agian. Thanks as alwayes this place has given me knowladge that was helpfull. Your friend Steve.

    Log in to Reply
  17. robin510 says

    May 12, 2014 at 2:19 am

    Thanks so much. This is the better of the bunch DIY baitwell instructions. Ive made 2 already. Thanks again for the info!

    Log in to Reply
